Using {projpred} latent projection with {brms} Weibull family models

Hi Stan Forum!

I am currently trying to implement the use of the excellent projpred package (thanks @fweber144 and colleagues!) for variable selection with brms parametric survival models that use a Weibull response distribution (with the default scale = “log” and shape = “identity” link functions). As in Catalina (2021) you can use the latent space projection approach to do this. This works OK with the GitHub branch (v2.0.5.9000) that the authors refer to in the paper; however, I’m hoping to implement it in projpred v2.8.0 to make use of the latest features and as an exercise to improve my understanding.

Following the threads of the above paper – and other related posts on this forum and GitHub – to the relevant vignette and documentation, implementing Weibull models with projpred v.2.8.0 requires passing custom functions for latent_ilink(), latent_ll_oscale(), and latent_ppd_oscale() to extend_family(). Following the vignette, I’ve implemented these functions for the Weibull distribution as in the reprex below. This works and provides more-or-less identical results to projpred v2.0.5.9000 with the same (correct) variables being selected in the same order. Despite this, I have a few questions:

  1. Have I implemented these extend_family() functions correctly?

  2. projpred v2.0.5.9000 sets the latent Weibull reference model dispersion parameter (dis) to 1 by default. projpred v2.8.0 sets this to NA (presumably because there’s no default for weibull models); however, if I manually set this to 1, I can fully reproduce the results from projpred v2.0.5.9000. My ignorance is on full display here, but given its presence in v2.0.5.9000, I assume this is an acceptable thing to do?

  3. Having to pass refm_shape through to latent_ll_oscale_weib() and latent_ppd_oscale_weib() means that the parallelisation fails, as this global environment object isn’t exported to the parallel workers. I see this issue has been raised on GitHub, but I wondered if there’s a short-term workaround by manually editing the call to foreach directly?

  4. The elpd plots look good when on the latent scale, but bad on the original response scale (resp_oscale = TRUE) – is this problematic? I assume this is kind of the point of the approach?

The actual problem case is very high-dimensional (p ~ 2,500, n ~ 250) and hierarchical in nature, but I’ve first simulated some simpler, non-hierarchical, lower-dimensional data (p = 100, n = 100) to make a reprex below.

## Packages ----
library(brms)
library(devtools)
library(dplyr)
library(MASS)
library(Matrix)
devtools::install_github("stan-dev/projpred", ref = "latent_projection") # v2.0.5.9000
library(projpred)
library(trialr)

## Simulate data ----
# Sample from LKJ distribution for a randomised correlation matrix
set.seed(1234)
cor_mat <- trialr::rlkjcorr(n = 1, K = 100, eta = 1)

# First and second variable sets correlate with each another within each set
cor_mat[91:95, 91:95] <- matrix(rep(0.5, times = 25), ncol = 5)
cor_mat[96:100, 96:100] <- matrix(rep(0.5, times = 25), ncol = 5)

# First and second variable sets do not correlate with one another between sets
cor_mat[91:95, 96:100] <- matrix(rep(0, times = 25))
cor_mat[96:100, 91:95] <- matrix(rep(0, times = 25))
diag(cor_mat) <- 1

# Sample some standard deviations of the variables
sd <- rgamma(100, 1, 2)

# Convert the correlation matrix to a covariance matrix
cov_mat <- diag(sd) %*% cor_mat %*% diag(sd)

# Sample variables from the multivariate normal distribution
vars <- MASS::mvrnorm(
  n = 100
  ,mu = rnorm(100, 30, 2.5)
  ,Sigma = Matrix::nearPD(cov_mat)$mat
)

# Scale the variables
scaled_vars <- apply(vars, 2, scale, scale = TRUE)

# Draws from Weibull distribution where only the last set of variables have predictive information
shape <- 1.2
predictors <- scaled_vars[,91:100] %*% rep(c(0.5, -0.5), each = 5)
linpred <- exp(0 + predictors)
scale_pred <- linpred / (gamma(1 + (1 / shape))) # brms AFT parameterisation

y <- rweibull(
  n = 100
  ,shape = shape
  ,scale = scale_pred
)

cens <- runif(100, 0, 4)
time <- pmin(y, cens)
status <- as.numeric(y <= cens)

df_sim <- data.frame(
  time = time
  ,status = status
  ,censored = 1 - status
  ,vars
)

## Fit model with all variables (ignore a few divergent transitions for now)
model_hs <- brm(
  time | cens(censored) ~ 1 + .
  ,family = weibull
  ,data = df_sim |> dplyr::select(-status)
  ,chains = 4
  ,iter = 3000
  ,prior = c(
    prior(normal(0, 100), class = Intercept)
    ,prior(horseshoe(par_ratio = 0.1), class = b)
    ,prior(gamma(1, 0.5), class = shape)
  )
  ,seed = 1234
  ,cores = 4
  ,control = list(adapt_delta = 0.95, max_treedepth = 15)
  ,save_pars = save_pars(all = TRUE)
)

## projpred v2.0.5.9000 ----
# Generate the reference model object with latent projection
refm_hs <- get_refmodel(model_hs, latent_proj = TRUE)
refm_hs$dis # all equal to 1 by default

ncores <- 10
doParallel::registerDoParallel(ncores)

# cv_varsel with official latent reference model
refm_hs_vsel_l1 <- cv_varsel(
  refm_hs
  ,method = "L1" # purely for speed
  ,cv_method = "LOO" # purely for speed
  ,seed = 1234
  ,validate_search = TRUE
  ,parallel = TRUE
  ,nterms_max = 10
)

## projpred v2.8.0 ----
install.packages("projpred") # install v2.8.0 from CRAN

# Custom extend_family() functions for Weibull family latent projection as per
# https://mc-stan.org/projpred/articles/latent.html#negbinex
refm_shape <- as.matrix(model_hs)[, "shape", drop = FALSE]

latent_ilink_weib <- function(
    lpreds
    ,cl_ref
    ,wdraws_ref = rep(1, length(cl_ref))
) {

  ilpreds <- exp(lpreds) # mu parameter link = "log"
  return(ilpreds)

}

latent_ll_oscale_weib <- function(
    ilpreds
    ,y_oscale
    ,wobs = rep(1, length(y_oscale))
    ,cl_ref
    ,wdraws_ref = rep(1, length(cl_ref))
) {

  y_oscale_mat <- matrix(
    y_oscale
    ,nrow = nrow(ilpreds)
    ,ncol = ncol(ilpreds)
    ,byrow = TRUE
  )

  wobs_mat <- matrix(
    wobs
    ,nrow = nrow(ilpreds)
    ,ncol = ncol(ilpreds)
    ,byrow = TRUE
  )

  refm_shape_agg <- cl_agg(refm_shape, cl = cl_ref, wdraws = wdraws_ref)
  ll_unw <- dweibull(
    y_oscale_mat
    ,shape = refm_shape_agg
    ,scale = ilpreds / gamma(1 + 1 / as.vector(refm_shape_agg)) # brms AFT parameterisation
    ,log = TRUE
  )
  return(wobs_mat * ll_unw)

}

latent_ppd_oscale_weib <- function(
    ilpreds_resamp
    ,wobs
    ,cl_ref
    ,wdraws_ref = rep(1, length(cl_ref))
    ,idxs_prjdraws
) {

  refm_shape_agg <- cl_agg(refm_shape, cl = cl_ref, wdraws = wdraws_ref)
  refm_shape_agg_resamp <- refm_shape_agg[idxs_prjdraws, , drop = FALSE]
  ppd <- rweibull(
    prod(dim(ilpreds_resamp))
    ,shape = refm_shape_agg_resamp
    ,scale = ilpreds_resamp / gamma(1 + 1 / as.vector(refm_shape_agg_resamp)) # brms AFT
  )
  ppd <- matrix(ppd, nrow = nrow(ilpreds_resamp), ncol = ncol(ilpreds_resamp))
  return(ppd)

}

# Generate the custom reference model object with latent projection
refm_hs_weib <- get_refmodel(
  model_hs
  ,latent = TRUE
  ,dis = rep(1, times = 6000) # to match v2.0.5.9000
  ,latent_ilink = latent_ilink_weib
  ,latent_ll_oscale = latent_ll_oscale_weib
  ,latent_ppd_oscale = latent_ppd_oscale_weib
)

# cv_varsel with custom latent reference model
refm_hs_weib_vsel_l1 <- cv_varsel(
  refm_hs_weib
  ,method = "L1" # purely for speed
  ,cv_method = "LOO" # purely for speed
  ,seed = 1234
  ,validate_search = TRUE
  ,parallel = FALSE # won't run due to `refm_shape`
  ,nterms_max = 10
)

# Check the selected predictors
identical(
  refm_hs_vsel_l1$solution_terms
  ,refm_hs_weib_vsel_l1$predictor_ranking
) # TRUE

# Check the ELPD values (effectively identical)
round(refm_hs_vsel_l1$summary$elpd.loo, 1)
# [1] -239.5 -215.7 -186.3 -172.6 -165.6 -158.2 -151.5 -141.5 -134.5 -128.1 -126.7

round(summary(refm_hs_weib_vsel_l1, resp_oscale = FALSE)$perf_sub$elpd, 1)
# [1] -250.4 -226.3 -185.3 -177.7 -166.4 -159.2 -147.0 -135.5 -129.6 -126.7 -124.5
  • Operating System: Ubuntu 24.04.2 LTS (running in WSL2)
  • brms Version: 2.22.0
  • projpred Version(s): 2.0.5.9000 and 2.8.0
  • trialr Version: 0.1.6

Thanks in advance!

  1. Have I implemented these extend_family() functions correctly?

Yes, they seem correct to me.

  1. projpred v2.0.5.9000 sets the latent Weibull reference model dispersion parameter (dis) to 1 by default. projpred v2.8.0 sets this to NA (presumably because there’s no default for weibull models); however, if I manually set this to 1, I can fully reproduce the results from projpred v2.0.5.9000. My ignorance is on full display here, but given its presence in v2.0.5.9000, I assume this is an acceptable thing to do?

If I remember correctly, the default of dis = 1 in projpred v2.0.5.9000 (branch latent_projection) did not have a theoretical meaning for many families, including the Weibull family. That’s why we switched to a default of NA for those families where a suitable default such as 1 (probit link) or 1.6 (logit link) is not obvious. As long as users don’t run “post-processing” analyses (e.g., those from plot.vsel() and summary.vsel()) on latent scale, the dis values don’t matter (this is shortly mentioned in the latent-projection vignette in the negative binomial example). You seem to be using latent-scale analyses in question 4, but I’m not sure if you really need them or if you just ran them for comparison.

  1. Having to pass refm_shape through to latent_ll_oscale_weib() and latent_ppd_oscale_weib() means that the parallelisation fails, as this global environment object isn’t exported to the parallel workers. I see this issue has been raised on GitHub, but I wondered if there’s a short-term workaround by manually editing the call to foreach directly?

From my experience, editing functions from packages within a running R session is possible but quite complicated (especially in a non-interactive way). So I would suggest that I’ll try to fix this in the GitHub version as soon as possible so you can use that. Sorry that I haven’t managed to work on this yet, there has been some other stuff that I wanted to finish first.

  1. The elpd plots look good when on the latent scale, but bad on the original response scale (resp_oscale = TRUE) – is this problematic? I assume this is kind of the point of the approach?

To answer this, I would need to check the plots. Does your reprex give comparable plots? In any case, forward search instead of L1 search might be worth a try.

1 Like

This is now fixed in branch master (by PR #510). You should now be able to run the CV in parallel by setting options(projpred.export_to_workers = c("refm_shape")) beforehand. If there are more objects you need to export, add their names to the character vector c("refm_shape").

1 Like

Thanks so much for taking the time to reply, much appreciated!

If I remember correctly, the default of dis = 1 in projpred v2.0.5.9000 (branch latent_projection) did not have a theoretical meaning for many families, including the Weibull family. That’s why we switched to a default of NA for those families where a suitable default such as 1 (probit link) or 1.6 (logit link) is not obvious. As long as users don’t run “post-processing” analyses (e.g., those from plot.vsel() and summary.vsel()) on latent scale, the dis values don’t matter (this is shortly mentioned in the latent-projection vignette in the negative binomial example). You seem to be using latent-scale analyses in question 4, but I’m not sure if you really need them or if you just ran them for comparison.

OK, so technically the implementation in v2.0.5.9000 for Weibull models using latent-scale analyses doesn’t have an obvious theoretical basis given a dis = 1 default. I ran the latent-scale analyses really just to check that the custom extend_family() functions I’d written were correct and were providing identical results between the two versions of projpred. This may just show my limited understanding of latent-scale analyses, but presumably a log-normal survival model might have a more obvious theoretical basis for dis? Not that it really matters if it’s better to look at the response scale anyway.

This is now fixed in branch master (by PR #510). You should now be able to run the CV in parallel by setting options(projpred.export_to_workers = c(“refm_shape”)) beforehand. If there are more objects you need to export, add their names to the character vector c(“refm_shape”).

This seems to be working fine, thank you!

To answer this, I would need to check the plots. Does your reprex give comparable plots? In any case, forward search instead of L1 search might be worth a try.

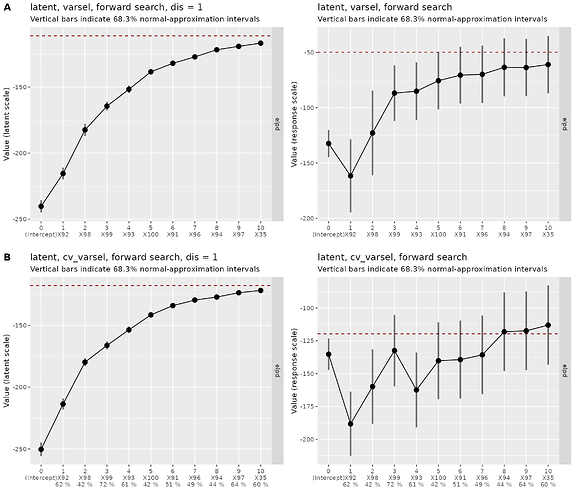

Yes, the reprex gives the plots below. They look OK when using just varsel, where only predictors X91:X100 are valuable (\beta_{91-95} = 0.5 and \beta_{96-100} = -0.5) and correlated (panel A below), but seem to degrade when adding in cross-validation with cv_varsel (panel B below). Interestingly, the baseline ELPD doesn’t match the loo() ELPD for the reference model, but I may just be misunderstanding how that’s presented/calculated in the plot. I’ve tried the following to see what may affect the results:

  1. Comparing horseshoe(par_ratio = 0.1) and R2D2(mean_R2 = 0.1, prec_R2 = 1.0, cons_D2 = 0.5) priors, which didn’t make a difference - I’d expect similar amounts of shrinkage for them anyway
  2. Comparing LOO and K-fold CV (as a few LOO folds had pareto warnings), which again made no difference
  3. Centering or scaling the predictors, which also made no difference

Weibull models:

I see the same odd plots when simulating some binomial data in the same way as the reprex (n = 100, p_{noise} = 90, p_{pred} = 10, \rho = 0.5, \beta_{91-95} = log(0.5), \beta_{96-100} = log(2)), even when using the latent projection. The results are in plots below (A, traditional projection varsel vs cv_varsel; B, latent projection varsel latent vs response scale; C latent projection cv_varsel latent vs response scale). I imagine it’s just some quirk with the way in which I’ve simulated the data, potentially because they all have the same coefficient? In the case of binomial models, I guess the latent scale dis parameter has a good theoretical basis, so this is less of an issue.

Binomial models:
